ASV-Stübbe-pystypumput


ASV-Stübben valmistama pystypumppu eri käyttökohteisiin laajan mallivalikoiman ja materiaaliyhdistelmien ansiosta.

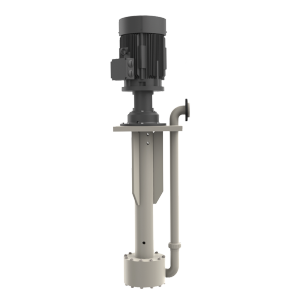

Pystypumppu ET

  • Sump pump with wetted axis and fluid lubrication
  • wide range of applications due to an extensive range of designs and material combinations
  • up to 4000mm submersion depth
  • solid, exchangeable plastic components
  • high operational safety even ender extreme working conditions
  • High-end mechanical seals for dry-run capable versions available
  • Tailor-made mounting plates and port connectors on request
  • Motor output: up to 15 kW
  • Sealing: EPDM, FPM
  • Connection: flange, socket, spigot

ASV-Stübbe pystypumppu (pumppu, kemikaalipumppu)

Pystypumppu ETL

  • Dry-run safe sump pump
  • Motors up to 45kw
  • non-wetted shaft bearing
  • Robust tandem bearing for vibration-free operation
  • solid, exchangeable plastic components
  • Tailor-made mounting plates and port connectors on request
  • Motor output: up to 45 kW
  • Sealing: EPDM, FPM
  • Connection: flange, socket, spigot

ASV-Stübbe pystypumppu (pumppu, kemikaalipumppu)

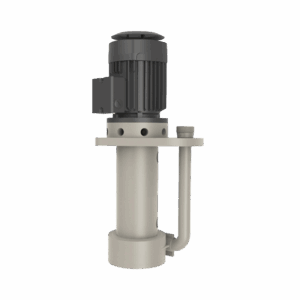

Pystypumppu ETLB-S

  • vertical single-stage immersion pump in block design
  • equipped with a freewheeling shaft for protection against dry running
  • excellent operating reliability even under extreme operating conditions
  • high availability due to simple modular design in the immersion depths 275/295, 375/395, 475/495
  • special mounting plate and connection designs available on request
  • optional design with dry set-up
  • Impeller fastened on the motor shaft
  • independent of the rotational direction
  • Screwless plastic spiral housing made of PP or PVDF
  • Three-phase motor manufactured by ASV-Stübbe with 0.37–7.5 kW, extended shaft and reinforced bearing
  • Sealing elements: EPDM, FPM
  • Connection: flange, socket, spigot



ASV-Stübbe pystypumppu (pumppu, kemikaalipumppu)
